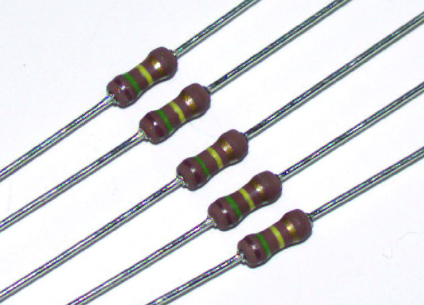

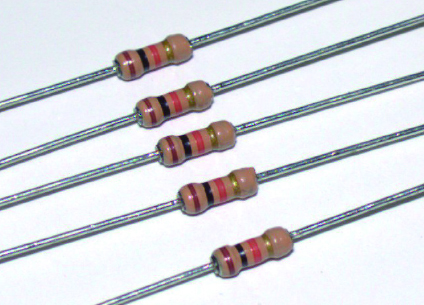

CR Series  Fixed carbon film resistor

■ FEATURES

  • Industry’s lowest cost and widest selection
  • Excellent long-time stability
  • Miniature size(CRS 1/2W)result in 50% space saving
  • Coating Color : Brown (CR 1/8W~CR1/2W), Pink (CRS1/2W, CRS1/4W)
  • Marking: Color Code

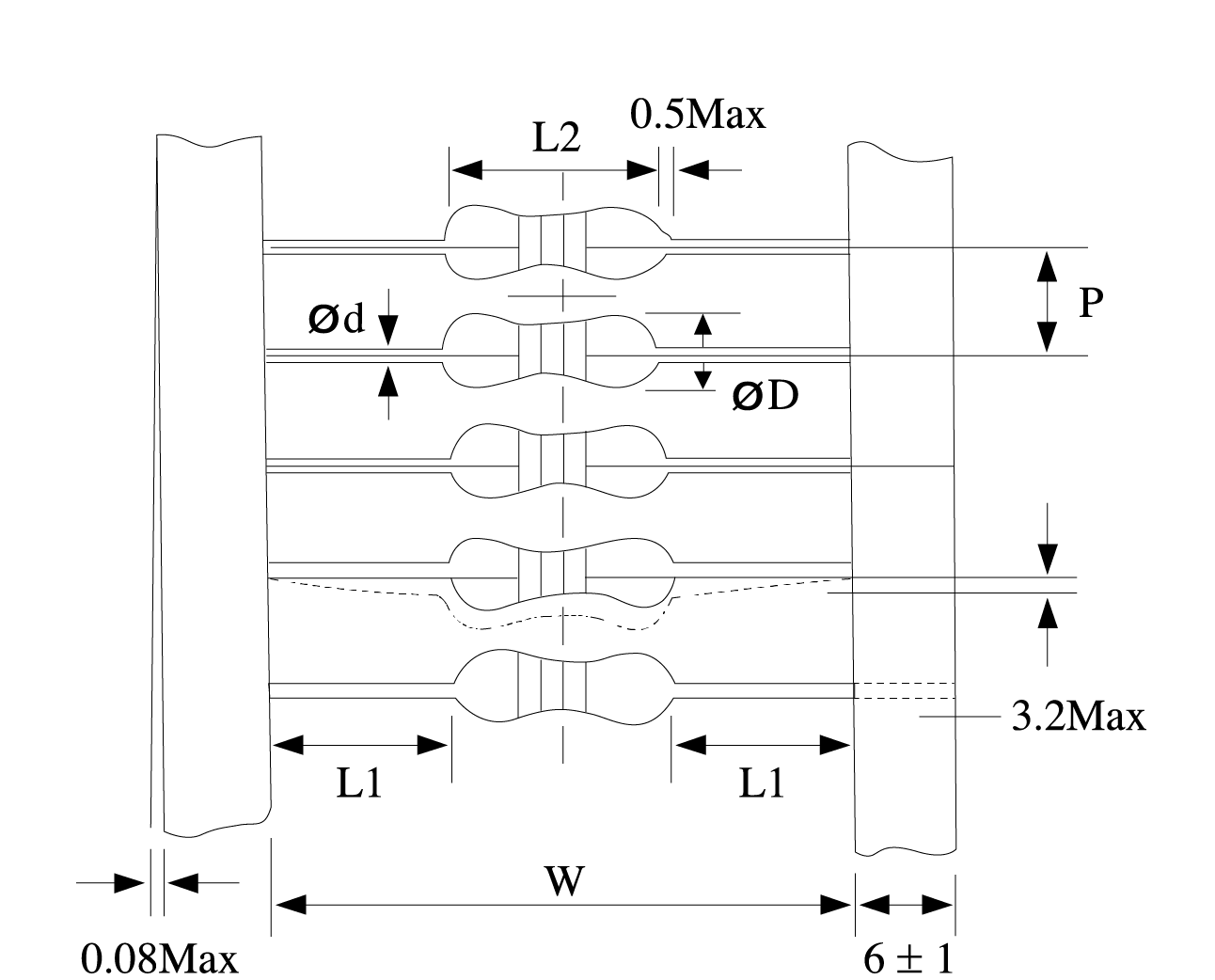

■ TAPING DIMENSION

Unit : mm

Type
W
L1
d
L2
P
D
CR 1/8W52 ± 1.024.0 ± 1.00.40 ± 0.053.2 ± 0.25.0 ± 1.01.8 ± 0.2
CRS 1/4W52 ± 1.024.0 ± 1.00.40 ± 0.053.2 ± 0.25.0 ± 1.01.8 ± 0.2
CR 1/4W52 ± 1.023.0 ± 1.00.50 ± 0.056.4 ± 0.25.0 ± 1.02.4 ± 0.2
CRS 1/2W52 ± 1.023.0 ± 1.00.50 ± 0.056.4 ± 0.25.0 ± 1.02.4 ± 0.2
CR 1/2W52 ± 1.021.5 ± 1.00.65 ± 0.059.0 ± 0.45.0 ± 1.03.3 ± 0.2

■ SPECIFICATIONS

*Consult factory for resistance values outside of above standard range.

**Voltage rating is determined by E= P•R, E should not exceed Max. Working Voltage.

Type
Power Rating
(W)
Max. Working
Voltage(V)
Max. Overload
Voltage(V)
Rating
Ambient Temp.
Operating
Temp. Range
Resistance
Range(Ω)
Resistance
Tolerance
CR 1/8
0.125
150
300
+70˚C


-55˚C ~ +155˚C


10-470K
G(±2%)
J(±5%)
CRS 1/4
0.25
250
500
10-470K
CR 1/4
0.25
250
500
10-1M
CRS 1/2
0.5
300
600
10-1M
CR 1/2
0.5
300
600
10-1M

■ HOW TO ORDER

ABEL Code
Power Rating
Resistance
Tolerance(±2%, ±5%), ±5%
is standard
Packing : “TB” is Tape(52㎜)
& Ammo Box
CR1/8W100ΩJTB

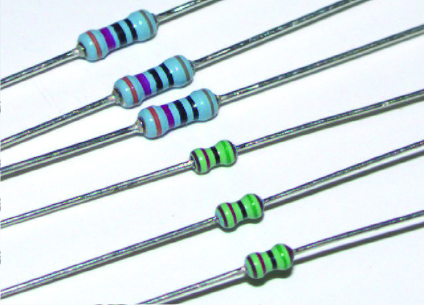

MR Series  Fixed metal film resistor

■ FEATURES

  • Precision performance, economical cost, improved stability
  • Low temperature coefficient, low current noise
  • Miniature size(MRS 1/2W)result in 50% space saving
  • Coating Color : Light Blue (MR 1/8W~MR1/2W), Light Green (MRS1/2W, 1/4W)
  • Marking: Color Code

■ TAPING DIMENSION

Unit : mm

Type
W
L1
d
L2
P
D
RM 1/8W52 ± 1.024.0 ± 1.00.40 ± 0.053.2 ± 0.25.0 ± 1.01.8 ± 0.2
MRS 1/4W52 ± 1.024.0 ± 1.00.40 ± 0.053.2 ± 0.25.0 ± 1.01.8 ± 0.2
MR 1/4W52 ± 1.023.0 ± 1.00.50 ± 0.056.4 ± 0.25.0 ± 1.02.4 ± 0.2
MRS 1/2W52 ± 1.023.0 ± 1.00.50 ± 0.056.4 ± 0.25.0 ± 1.02.4 ± 0.2
MR 1/2W52 ± 1.021.5 ± 1.00.65 ± 0.059.0 ± 0.45.0 ± 1.03.3 ± 0.2

■ SPECIFICATIONS

*Consult factory for resistance values outside of above standard range.

**Voltage rating is determined by E= P•R, E should not exceed Max. Working Voltage.

Type
Power Rating
(W)
Max. Working
Voltage(V)
Max. Overload
Voltage(V)
Rating
Ambient Temp.
Operating
Temp. Range
Resistance
Range(Ω)
Resistance
Tolerance
MR 1/8
0.125
150
300
+70˚C


-55˚C
~ +155˚C


10-470K
B(±0.1%)
C(±0.25%)
D(±0.5%)

F(±1%)

MRS 1/4
0.25
250
500
10-470K
MR 1/4
0.25
250
500
10-1M
MRS 1/2
0.5
300
600
10-1M
MR 1/2
0.5
300
600
10-2.2M

■ HOW TO ORDER

ABEL Code
Power Rating
Resistance
Tolerance(±0.1%,0.25%,0.5%,1%), ±1% is standard
Packing : “TB” is Tape(52㎜) & Ammo Box
MR1/8W100ΩFTB

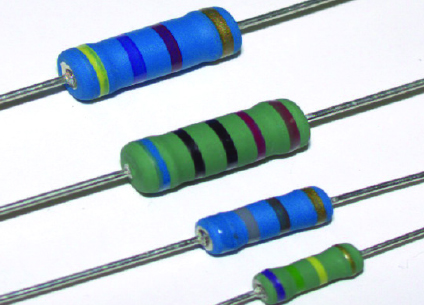

MOR Series  Fixed metal oxide film resistor

■ FEATURES

  • Excellent mechanical and thermal shock at a high temperature
  • Flame proof overloaded owing to the flame resistant coating
  • Suitable to pulse circuits
  • Coating Color: Blue(MOR 1W, 2W), Green(MORS 1W, 2W, 3W)
  • Miniature size(MORS 1W, 2W, 3W)result in 50% space saving
  • Marking: Color Code

■ TAPING DIMENSION

Unit : mm

Type
W
L1
d
L2
P
D
MORS 1W52 ±1.021.5 ± 1.00.70 ±0.059.0 ± 0.45.0 ± 1.03.3 ± 0.2
MOR 1W64 ± 1.0
26.5 ± 1.00.70 ±0.0511.0 ± 1.05.0 ± 1.03.8 ± 0.3
MORS 2W64 ± 1.0
26.5 ± 1.00.70 ±0.0511.0 ± 1.05.0 ± 1.03.8 ± 0.3
MOR 2W64 ± 1.0
24.5 ± 1.00.80 ±0.0515.0 ± 1.010.0 ± 1.05.6 ± 0.5
MORS 3W64 ± 1.0
24.5 ± 1.00.80 ±0.0515.0 ± 1.010.0 ± 1.05.6 ± 0.5

■ SPECIFICATIONS

*Consult factory for resistance values outside of above standard range.

**Voltage rating is determined by E= P•R, E should not exceed Max. Working Voltage.

Type
Power Rating
(W)
Max. Working
Voltage(V)
Max. Overload
Voltage(V)
Rating
Ambient Temp.
Operating
Temp. Range
Resistance
Range(Ω)
Resistance
Tolerance
MORS 1W
1
300
600
+70˚C


-55˚C
~ +235˚C


10-470K

F(±1%)

G(±2%)

J(±5%)

K(±10%)


MOR 1W
1
350
600
10-470K
MORS 2W
2
350
600
10-470M
MOR 2W
2
350
600
10-470M
MORS 3W
3
400
700
10-470M

■ HOW TO ORDER

ABEL Code
Power Rating
Resistance
Tolerance(±1%,2%,5%,10%), ±5% is standard
Packing : TB is Tape(52mm&64mm) & Ammo Box
MOR2W10ΩJTB

MORSS Series  Double miniature type fixed metal oxide film resistor

■ FEATURES

  • High power in miniature size, Flameproof construction
  • MORSS series are similar to the original MOR models but due to improved design result in wattage ratings up to double those of the same body size
  • Increased power is achieved by a special film process and high grade ceramic(alumina) rods
  • MORSS series can provide you a compact design and improve your productivity
  • Coating Color: Dark Brown     • Marking: Color Code

■ TAPING DIMENSION

Unit : mm

Type
W
L1
d
L2
P
D
MORSS 1W52 ± 1.023.0 ± 1.00.60 ± 0.056.4 ± 0.25.0 ± 1.02.4 ± 0.2
MORSS 2W
52 ± 1.0
21.5 ±1.00.70 ± 0.05 9.0 ± 0.45.0 ± 1.03.8 ± 0.3

■ SPECIFICATIONS

*Consult factory for resistance values outside of above standard range.

**Voltage rating is determined by E= P•R, E should not exceed Max. Working Voltage.

Type
Power Rating
(W)
Max. Working
Voltage(V)
Max. Overload
Voltage(V)
Rating
Ambient Temp.
Operating
Temp. Range
Resistance
Range(Ω)
Resistance
Tolerance
MORSS 1W
1
300
600
+70˚C


-55˚C
~ +235˚C


10-470K
G(±2%)
J(±5%)
MORSS 2W
2
350

■ HOW TO ORDER

ABEL Code
Power Rating
Resistance
Tolerance(±2%, ±5%), ±5% is standard
Packing : “TB” is Tape(52㎜)
& Ammo Box
MORSS2W10ΩJTB

ASR Series  Fixed anti surge resistor

■ FEATURES

  • Excellent anti-surge characteristics
  • Stable characteristics through the resistance range
  • Coating color : Dark Brown
  • Marking : Color code

■ TAPING DIMENSION

Unit : mm

Type
W
L1
d
L2
P
D
ASR 1/4W52 ± 1.023.0 ± 1.00.60 ± 0.056.4 ± 0.25.0 ±1.02.4 ±0.2
ASRS 1/2W52 ± 1.023.0 ± 1.00.60 ± 0.056.4 ± 0.25.0 ±1.02.4 ±0.2
ASR 1/2W52 ± 1.021.5 ± 1.00.70 ± 0.059.0 ± 0.45.0 ±1.03.8 ±0.3
ASRS 1W52 ± 1.021.5 ± 1.00.70 ± 0.059.0 ± 0.45.0 ±1.03.8 ±0.3
ASR 1W64 ± 1.026.5 ± 1.00.70 ± 0.0511.0 ± 1.05.0 ±1.03.8 ±0.3
ASRS 2W64 ± 1.026.5 ± 1.00.70 ± 0.0511.0 ± 1.05.0 ±1.03.8 ±0.3
ASR 2W64 ± 1.024.5 ± 1.00.80 ± 0.0515.0 ± 1.010.0 ±1.05.6 ±0.5
ASRS 3W64 ± 1.024.5 ± 1.00.80 ± 0.0515.0 ± 1.010.0 ±1.05.6 ±0.5

■ SPECIFICATIONS

*Consult factory for resistance values outside of above standard range.

**Voltage rating is determined by E= P•R, E should not exceed Max. Working Voltage.

Type
Power Rating
(W)
Max. Working
Voltage(V)
Max. Overload
Voltage(V)
Rating
Ambient Temp.
Operating
Temp. Range
Resistance
Range(Ω)
Resistance
Tolerance
ASR 1/4W
0.25
700
1,000
+70˚C


-55˚C
~ +155˚C


51K-33M

F(±1%)

J(±5%)

ASRS 1/2W
0.5
700
1,000
ASR 1/2W
0.5
1,000
2,000
51K-1G

C(±0.25%)

D(±0.5%)

F(±1%)

G(±2%)

J(±5%)

K(±10%)

ASRS 1W
1
1,000
2,000
ASR 1W
1
2,000
4,000
ASRS 2W
2
2,000
4,000
ASR 2W
2
3,000
6,000
ASRS 3W
3
3,000
6,000

■ HOW TO ORDER

ABEL Code
Power Rating
Resistance
Tolerance
Packing : “TB” is Tape(52mm&64mm) & Ammo Box
ASR1/2W1MΩ
JTB

MG Series  Fixed metal glaze resistor

■ FEATURES

  • Stable performance against high temperature and voltage
  • Good performance in enduring moisture and overload capability

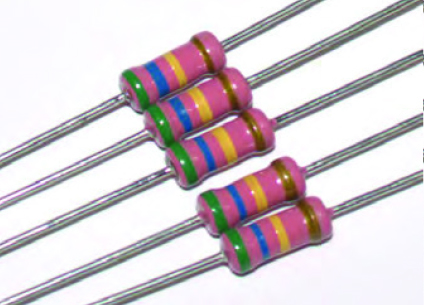

  • Coating color : Pink
  • Marking : Color code

■ TAPING DIMENSION

Unit : mm

Type
W
L1
d
L2
P
D
MG 1/4W52 ± 1.023.0 ± 1.00.60 ± 0.056.4 ± 0.25.0 ±1.02.4 ±0.2
MGS 1/2W52 ± 1.023.0 ± 1.00.60 ± 0.056.4 ± 0.25.0 ±1.02.4 ±0.2
MG 1/2W52 ± 1.021.5 ± 1.00.70 ± 0.059.0 ± 0.45.0 ±1.03.8 ±0.3
MGS 1W52 ± 1.021.5 ± 1.00.70 ± 0.059.0 ± 0.45.0 ±1.03.8 ±0.3
MG 1W64 ± 1.026.5 ± 1.00.70 ± 0.0511.0 ± 1.05.0 ±1.03.8 ±0.3
MGS 2W64 ± 1.026.5 ± 1.00.70 ± 0.0511.0 ± 1.05.0 ±1.03.8 ±0.3
MG 2W64 ± 1.024.5 ± 1.00.80 ± 0.0515.0 ± 1.010.0 ±1.05.6 ±0.5
MGS 3W64 ± 1.024.5 ± 1.00.80 ± 0.0515.0 ± 1.010.0 ±1.05.6 ±0.5

■ SPECIFICATIONS

*Consult factory for resistance values outside of above standard range.

**Voltage rating is determined by E= P•R, E should not exceed Max. Working Voltage.

Type
Power Rating
(W)
Max. Working
Voltage(V)
Max. Overload
Voltage(V)
Rating
Ambient Temp.
Operating
Temp. Range
Resistance
Range(Ω)
Resistance
Tolerance
MG 1/4W
0.25
700
1,000
+70˚C


-55˚C
~ +155˚C


51K-33M

F(±1%)

J(±5%)

MGS 1/2W
0.5
700
1,000
MG 1/2W
0.5
1,000
2,000
51K-1G

C(±0.25%)

D(±0.5%)

F(±1%)

G(±2%)

J(±5%)

K(±10%)

MGS 1W
1
1,000
2,000
MG 1W
1
2,000
4,000
MGS 2W
2
2,000
4,000
MG 2W
2
3,000
6,000
MGS 3W
3
3,000
6,000

■ HOW TO ORDER

ABEL Code
Power Rating
Resistance
Tolerance
Packing : “TB” is Tape(52mm&64mm) & Ammo Box
MGS1/2W1MΩ
KTB

FR Series  Fixed fusible resistor

■ FEATURES

  • Provide an excellent fusing characteristic for CIRCUIT protection in case of overload or component failure.
  • Opening th circuit safety without burning and flaming at a emergency overload due to make use of flame proof coating.
  • Coating Color: Gray       • Marking: Color Code

■ TAPING DIMENSION

Unit : mm

Type
W
L1
d
L2
P
D
FR 1/4W52 ± 1.023.0 ± 1.00.60 ± 0.056.4 ± 0.25.0 ±1.02.4 ±0.2
FRS 1/2W52 ± 1.023.0 ± 1.00.60 ± 0.056.4 ± 0.25.0 ±1.02.4 ±0.2
FR 1/2W52 ± 1.021.5 ± 1.00.70 ± 0.059.0 ± 0.45.0 ±1.03.3 ±0.2
FRS 1W52 ± 1.021.5 ± 1.00.70 ± 0.059.0 ± 0.45.0 ±1.03.3 ±0.2
FR 1W64 ± 1.026.5 ± 1.00.70 ± 0.0511.0 ± 1.05.0 ±1.03.8 ±0.3
FRS 2W64 ± 1.026.5 ± 1.00.70 ± 0.0511.0 ± 1.05.0 ±1.03.8 ±0.3
FR 2W64 ± 1.024.5 ± 1.00.80 ± 0.0515.0 ± 1.010.0 ±1.05.6 ±0.5

■ SPECIFICATIONS

*Consult factory for resistance values outside of above standard range.

**Voltage rating is determined by E= P•R, E should not exceed Max. Working Voltage.

Type
Power Rating
(W)
Max. Working
Voltage(V)
Max. Overload
Voltage(V)
Rating
Ambient Temp.
Operating
Temp. Range
Resistance
Range(Ω)
Resistance
Tolerance
FR 1/4W
0.25
220
350
+70˚C
-25˚C
~ +155˚C
0.22-1K

J(±5%)

K(±10%)

FRS 1/2W
0.5
250
350
FR 1/2W
0.5
250
350
FRS 1W
1
300
600
FR 1W
1
300
600
FRS 2W
2
300
800
FR 2W
2
300
800

■ HOW TO ORDER

ABEL Code
Power Rating
Resistance
Tolerance(±5%,10%), ±5% is standard
Packing : TB is Tape(52mm & 64mm) & Ammo Box
FR1/2W2E2
JTB


아벨정밀(주)

충청북도 증평군 도안면 상그린로 62

대표   연세흠, 연제욱

사업자등록번호   315-81-20057


회사소개제품소개R&D 및 기술력오시는 길
기업소개
기업연혁
미션 및 비전
오시는 길		Fixed Resistor
RFI Resistor for Automotive
Other Electronic Components
제조공정
특허 및 인증서
생산설비		위치 안내

상호  아벨정밀(주)                     주소  충청북도 증평군 도안면 상그린로 62 아벨정밀주식회사                           대표이사  연세흠, 연제욱

연락처  043-838-3391~2                  사업자등록번호 315-81-20057                     Copyright © 아벨정밀(주). All rights reserved.
