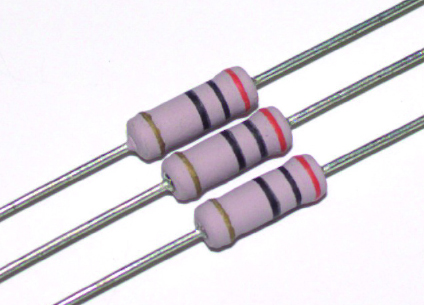

WRP Series  Power type silicone coated wire wound resistor

■ FEATURES

  • Coated with silicone resin of high resistance
  • Ceramic rod results in performance levels far superior to general fiberglass core.
  • Available to high resistance by automatic winding.
  • Coating Color: Pink
  • Marking: Color Code

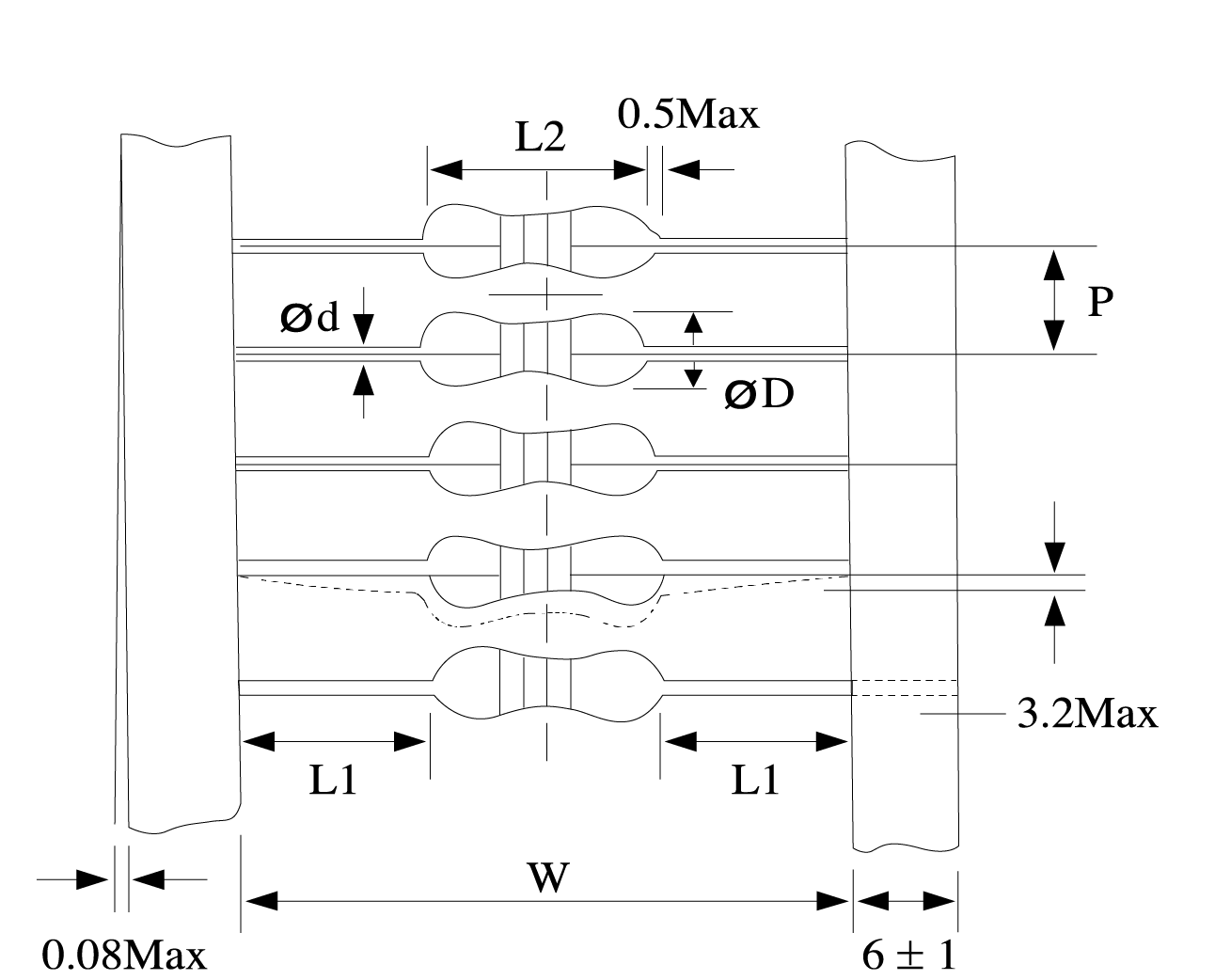

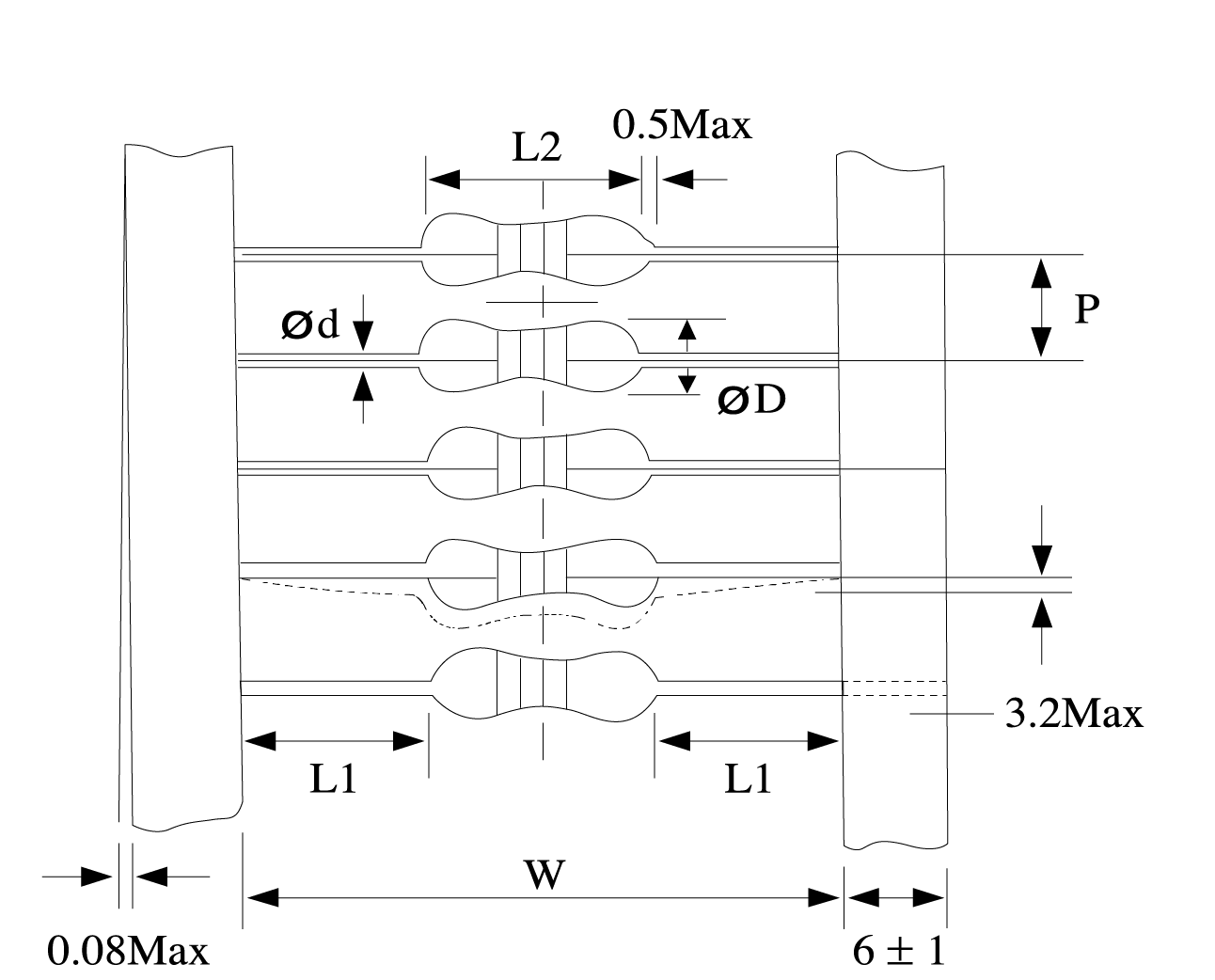

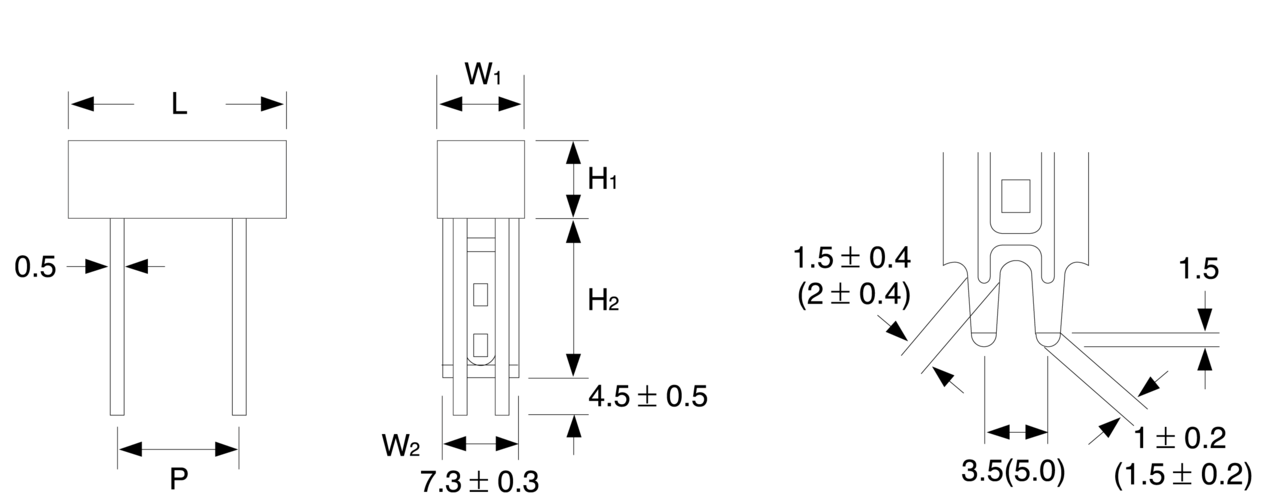

■ TAPING DIMENSION

Unit : mm

Type
W
L1
d
L2
P
D
WRP 1/2W52 ± 1.023.0 ± 1.00.70 ± 0.059.0 ± 0.45.0 ± 1.03.8 ± 0.3
WRPS 1W52 ± 1.023.0 ± 1.0
0.70 ± 0.05
9.0 ± 0.4
5.0 ± 1.03.8 ± 0.3
WRP 1W
64 ± 1.0
26.5 ± 1.0
0.70 ± 0.05
11.0 ± 1.0
5.0 ± 1.0
3.8 ± 0.3
WRPS 2W
64 ± 1.026.5 ± 1.0
0.70 ± 0.05
11.0 ± 1.0
5.0 ± 1.03.8 ± 0.3
WRP 2W
64 ± 1.0
24.5 ± 1.00.80 ± 0.05
15.0 ± 1.0
10.0 ± 1.05.6 ± 0.5
WRPS 3W
64 ± 1.0
24.5 ± 1.0
0.80 ± 0.05
15.0 ± 1.0
10.0 ± 1.0
5.6 ± 0.5

■ SPECIFICATIONS

*Consult factory for resistance values outside of above standard range.

**Voltage rating is determined by E= P•R, E should not exceed Max. Working Voltage.

Type
Power Rating
(W)
Max. Working
Voltage(V)
Dielectric Withstanding

Voltage(V)

Rating
Ambient Temp.
Operating
Temp. Range
Resistance
Range(Ω)
Resistance
Tolerance
WRP 1/2W
0.5
60
120
+70˚C


-25˚C ~ +155˚C


0.01-10
F(±1%)
G(±2%)
J(±5%)
K(±10%)
WRPS 1W
1
WRP 1W
1
WRPS 2W
2
WRP 2W
2
WRPS 3W
3

■ HOW TO ORDER

ABEL Code
Power Rating
Resistance
Tolerance
Packing : “TB” is Tape(52㎜ & 64mm) & Ammo Box
WRP2W10ΩJTB

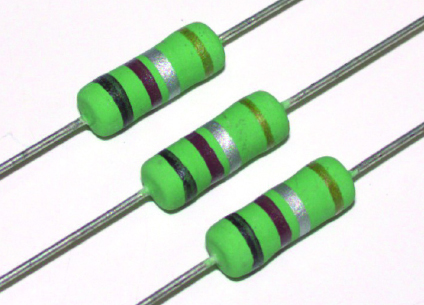

WNP Series  Non-inductive wire wound resistor

■ FEATURES

  • Coated with silicone resin of high resistance
  • Ceramic rod results in performance levels far superior to general fiberglass core.
  • Available to high resistance by automatic winding.
  • Coating Color: Green
  • Marking: Color Code

■ TAPING DIMENSION

Unit : mm

Type
W
L1
d
L2
P
D
WNP 1/2W52 ± 1.023.0 ± 1.00.70 ± 0.059.0 ± 0.25.0 ± 1.03.8 ± 0.3
WNPS 1W52 ± 1.023.0 ± 1.00.70 ± 0.05
9.0 ± 0.2
5.0 ± 1.0
3.8 ± 0.3
WNP 1W64 ± 1.026.5 ± 1.00.70 ± 0.05
11.0 ± 1.0
5.0 ± 1.0
3.8 ± 0.3
WNPS 2W
64 ± 1.0
26.5 ± 1.0
0.70 ± 0.05
11.0 ± 1.0
5.0 ± 1.0
3.8 ± 0.3
WNP 2W64 ± 1.0
24.5 ± 1.00.80 ± 0.05
15.0 ± 1.010.0 ± 1.05.6 ± 0.5
WNPS 3W64 ± 1.0
24.5 ± 1.0
0.80 ± 0.05
15.0 ± 1.0
10.0 ± 1.05.6 ± 0.5

■ SPECIFICATIONS

*Consult factory for resistance values outside of above standard range.

**Voltage rating is determined by E= P•R, E should not exceed Max. Working Voltage.

Type
Power Rating
(W)
Max. Working
Voltage(V)
Max. Overload
Voltage(V)
Rating
Ambient Temp.
Operating
Temp. Range
Resistance
Range(Ω)
Resistance
Tolerance
WNP 1/2W
0.5




60




120
+70˚C


-55˚C
~ +155˚C



0.01-10

F(±1%)
G(±2%)
J(±5%)
K(±10%)
WNPS 1W
1
WNP 1W
1
WNPS 2W
2
WNP 2W
2
WNPS 3W
3

■ HOW TO ORDER

ABEL Code
Power Rating
Resistance
Tolerance
Packing : TB is Tape(52mm & 64mm)&Ammo Box
WNP2W10ΩJTB

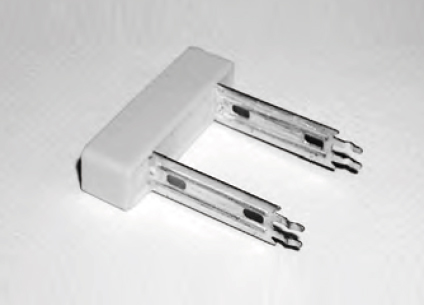

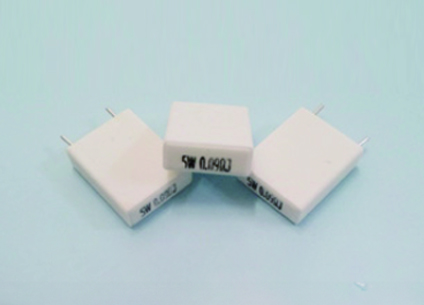

MPR Series  Metal plate resistor

■ FEATURES

  • Low resistance values
  • Non inductive
  • Excellent stability and moisture


■ APPLICATIONS

  • PDP power board
  • LCD / LED power board
  • Power supplies

■ DIMENSION

Unit : mm

Type
Dimension(mm)
A
B
C
P
L
D
MPR 2W8.5 ± 0.515 ± 1.05 ± 0.510 ± 1.0
5 ± 1.0
0.8 ± 0.05
MPR 3W13.5 ± 1.0
15 ± 1.05 ± 1.0
MPR 5W18.0 ± 1.0
15 ± 1.05 ± 1.0

■ SPECIFICATIONS

*Consult factory for resistance values outside of above standard range.

**Voltage rating is determined by E= P•R, E should not exceed Max. Working Voltage.

Type
Power Rating
(W)
Max. Working
Voltage(V)
Max. Overload
Voltage(V)
Rating
Ambient Temp.
Operating
Temp. Range
Resistance
Range(Ω)
Resistance
Tolerance
MPR 2W
2
50
100
+70˚C


-45˚C
~ +200˚C


0.01 ~ 3.0Ω

F(±1%)

G(±2%)

J(±5%)

K(±10%)

MPR 3W
3
MPR 5W
5

■ HOW TO ORDER

ABEL Code
Power Rating
Resistance
Tolerance(±1%,2%,5%,10%), ±5% is standard
Packing : Bulk
MPR5W0.09ΩJBK

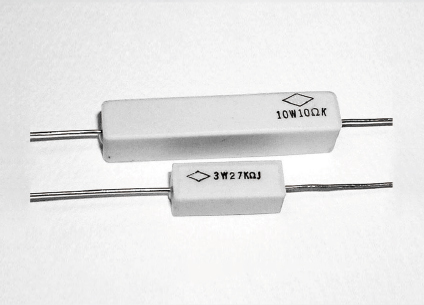

WRC Series  Power type cement resistor

■ R-TYPE

Type
Power

Rating(W)

Resistance

Range(Ω)

Dimensions(mm)
L
W
H
P
D
WRC 2R20.1 - 20011.0 ± 1.0
0.75 ± 1.020.5 ± 1.05.0 ± 1.00.80 ± 0.05
WRC 3R30.1 - 30011.0 ± 1.00.75 ± 1.020.5 ± 1.05.0 ± 1.00.80 ± 0.05
WRC 5R50.1 - 30013.5 ± 1.09.3 ± 1.025.3 ± 1.05.0 ± 1.00.80 ± 0.05
WRC 7R70.1 - 47013.5 ± 1.010.0 ± 1.038.6 ± 1.05.0 ± 1.00.80 ± 0.05

■ P-TYPE

Type
Power

Rating(W)

Resistance

Range(Ω)

Dimensions(mm)
L1
L2
W
H
d
WRC 2P2W0.1 - 20017.5 ± 1.5
27.0 ± 3.0
6.4 ± 1.06.4 ± 1.00.80 ± 0.05
WRC 3P3W0.1 - 30022.0 ± 1.5
25.0 ± 3.0
8.0 ± 1.08.0 ± 1.00.80 ± 0.05
WRC 5P5W0.1 - 30022.0 ± 1.5
25.0 ± 3.0
9.5 ± 1.09.5 ± 1.00.80 ± 0.05
WRC 7P
7W
00.1 - 470
35.0 ± 1.5
25.0 ± 3.0
9.5 ± 1.0
9.5 ± 1.0
0.80 ± 0.05
WRC 10P
10W00.1 - 500
48.0 ± 1.527.0 ± 3.0
9.5 ± 1.0
9.5 ± 1.0
0.80 ± 0.05
WRC 15P
15W00.1 - 1K
48.0 ± 1.525.0 ± 3.0
12.5 ± 1.0
12.5 ± 1.0
0.80 ± 0.05
WRC 207P
20W0.5 - 1K63.0 ± 1.5
25.0 ± 3.0
12.5 ± 1.0
12.5 ± 1.0
0.80 ± 0.05
WRC 25R25W0.5 - 1K
63.0 ± 1.5
25.0 ± 3.0
12.5 ± 1.0
12.5 ± 1.0
0.80 ± 0.05

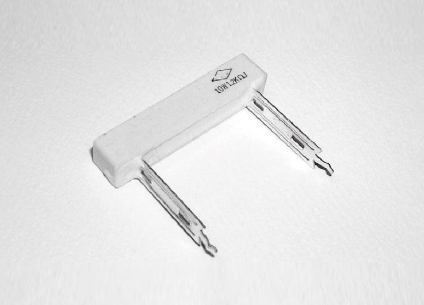

■ MS-TYPE

Type
Power

Rating(W)

Resistance

Range(Ω)

Dimensions(mm)
L
P
W1
W2
H1
H2
WRC 5MS50.1 - 30027.0 ± 1.0
15.0 ± 1.0
9.5 ± 1.0
7.0 ± 1.0
9.5 ± 1.0
12/15/25 ± 1.0
WRC 7MS
70.01 - 47035.0 ± 1.0
20.0 ± 1.0
9.5 ± 1.0
7.0 ± 1.0
9.5 ± 1.0
12/15/25 ± 1.0
WRC 10MS
100.01 - 500
48.0 ± 1.0
35.0 ± 1.0
10.5 ± 1.0
7.0 ± 1.0
9.5 ± 1.0
12/15/25 ± 1.0
WRC 15MS
1500.1 -1K
48.0 ± 1.0
35.0 ± 1.0
12.5 ± 1.0
7.0 ± 1.0
12.5 ± 1.0
12/15/25 ± 1.0
WRC 20MS
250.5 - 1K
62.5 ± 1.0
47.5 ± 1.0
12.5 ± 1.0
7.0 ± 1.0
12.5 ± 1.0
12/15/25 ± 1.0

■ R-TYPE

Type
Power

Rating(W)

Resistance

Range(Ω)

Dimensions(mm)
L
P
W1
W2
H1
H2
WRC 5MD50.1 - 30027.0 ± 1.015.0 ± 1.09.5 ± 1.07.0 ± 1.09.5 ± 1.012/15/25 +2.0
12/15/25 -1.0
WRC 7D
70.01 - 47035.0 ± 1.020.0 ± 1.09.5 ± 1.07.0 ± 1.09.5 ± 1.012/15/25 +2.0
12/15/25 -1.0
WRC 10MD100.01 - 500
48.0 ± 1.035.0 ± 1.010.5 ± 1.07.0 ± 1.09.5 ± 1.012/15/25 +2.0
12/15/25 -1.0

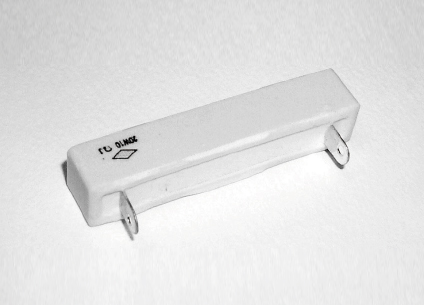

■ L(LUG-TYPE)

Type
Power

Rating(W)

Resistance

Range(Ω)

Dimensions(mm)
L
L1
L2
W
W1
H1
H2
WRC 10L100.01 - 50048.0 ± 1.5
13.0 ± 1.0
35.0 ± 1.2
9.5 ± 1.0
6.0 ± 1.0
9.5 ± 0.7
20 ± 1.7
WRC 15L
150.01 - 1K48.0 ± 1.5
25.0 ± 1.0
35.0 ± 1.2
12.5 ± 1.0
6.0 ± 1.0
12.5 ± 0.7
20 ± 1.7
WRC 20L
200.5 - 1K63.5 ± 1.5
25.0 ± 1.0
48.0 ± 1.2
12.5 ± 1.0
6.0 ± 1.0
12.5 ± 0.7
20 ± 1.7
WRC 25L
250.5 - 1K
63.5 ± 1.5
25.0 ± 1.0
48.0 ± 1.2
16.0 ± 1.0
6.0/7.5 ± 1.0
15.7 ± 0.7
24/28 ± 1.7
WRC 30L
300.5 - 1K
70.0 ± 1.5
40.0 ± 1.0
50.0 ± 1.2
16.0 ± 1.0
6.0/7.5 ± 1.0
15.7 ± 0.7
24/28 ± 1.7
WRC 40L
400.5 - 1K
90.0 ± 1.5
40.0 ± 1.0
68.0 ± 1.2
16.0 ± 1.0
6.0/7.5 ± 1.0
15.7 ± 0.7
24/28 ± 1.7
WRC 60L
600.5 - 1K
90.0 ± 1.5
40.0 ± 1.0
68.0 ± 1.2
16.0 ± 1.0
6.0/7.5 ± 1.0
15.7 ± 0.7
24/28 ± 1.7

■ HOW TO ORDER

ABEL Code
Power Rating
Type
Resistance
Tolerance
Packing
WRC5R
10Ω
JBK
